Xtar MX4 Mini Mixer 1.5V, 3.7V Lithium & AA/AAA NiMH Charger

The Xtar MX4 Mini Mixer is a four-slot charger engineered to manage a range of rechargeable chemistries within a single unit. Each bay determines the appropriate charging method automatically, applying voltage and current profiles suited to lithium-based cells and NiMH formats. This configuration enables independent charging behaviour, allowing multiple battery types to be processed simultaneously without user adjustment. The design supports all three major rechargeable categories—1.5 V lithium AA/AAA, 1.2 V NiMH AA/AAA, and 3.6/3.7 V lithium-ion—making it the first charger in its class capable of charging all three within one system.

Its USB-C input provides stable low-voltage power, while internal control logic manages charge progression and termination. LED indicators present slot-by-slot status, and built-in safeguards help regulate operation during routine use. The mechanical layout supports common cylindrical sizes and offers activation support for cells that have fallen below typical operating voltage. Unlike capacity-limited chargers, the MX4 imposes no maximum mAh rating; it determines charge completion by monitoring voltage behaviour rather than battery capacity, enabling compatibility with high-capacity cells.

Key features

• Four independent charging bays operating with multi-chemistry support.
• Supports all three major rechargeable battery types: 1.5 V lithium AA/AAA, 1.2 V NiMH AA/AAA and 3.6/3.7 V lithium-ion (e.g., 18650 series).
• First charger of its kind capable of charging all three types simultaneously in one unit.
• No maximum battery capacity limit — charging completion is voltage-based, not dependent on mAh rating.
• Automated identification of Li-ion, LiFePO₄, 1.5 V lithium rechargeable, and NiMH cells.

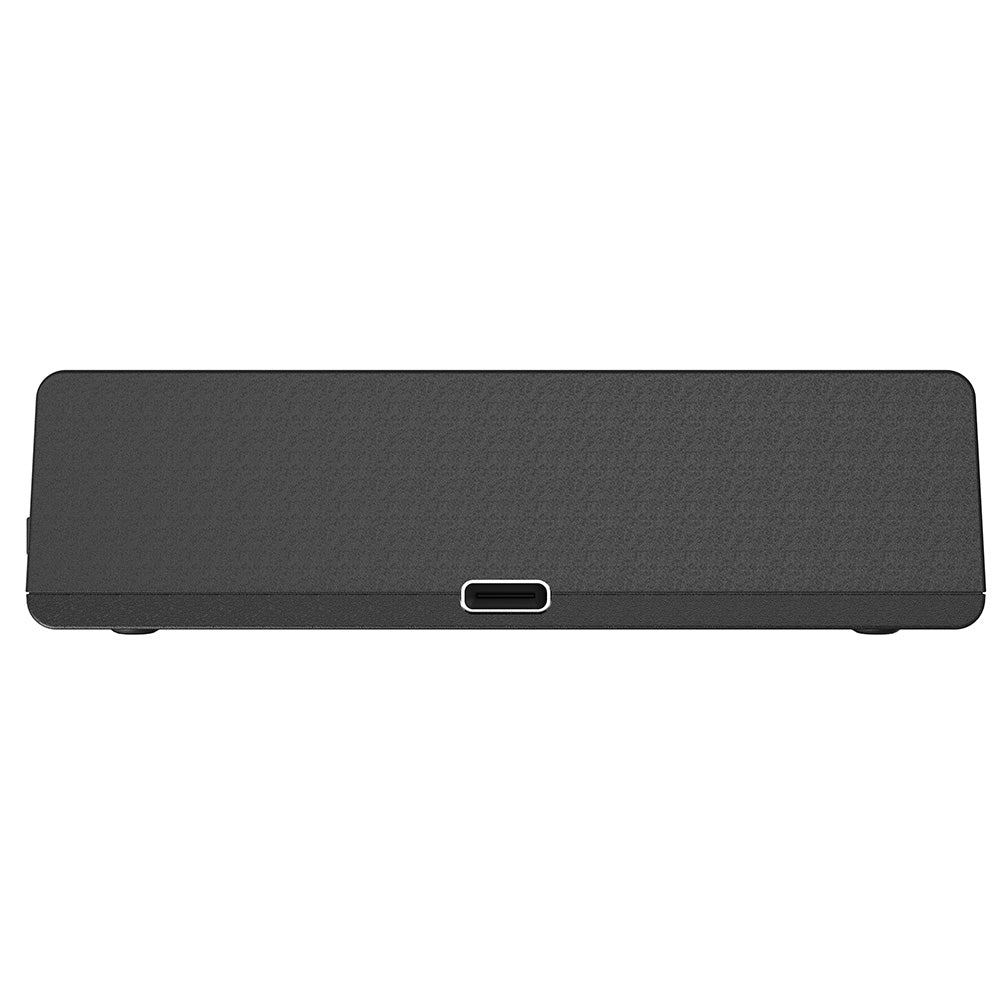

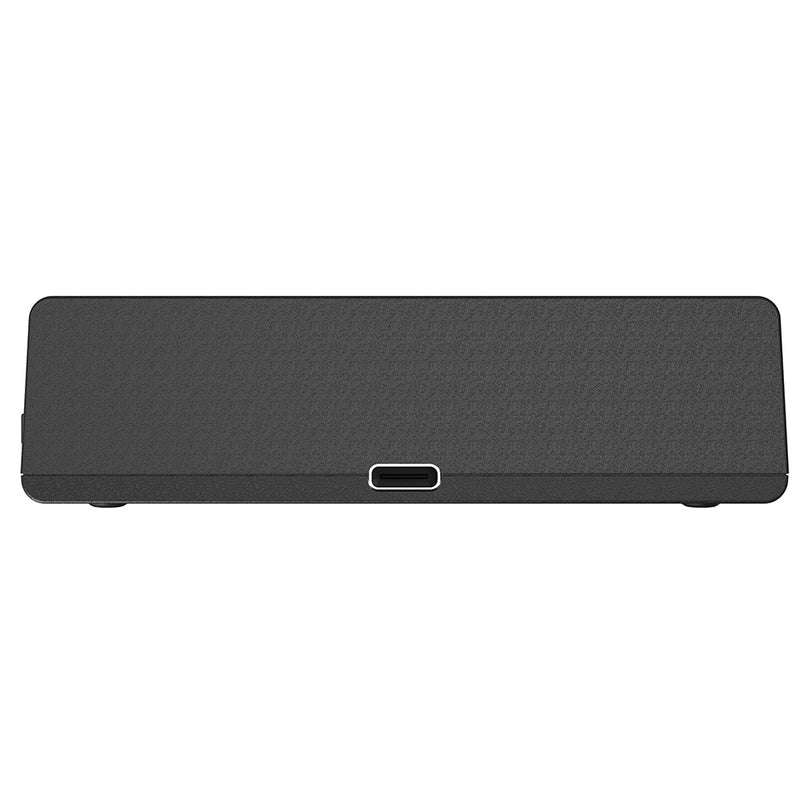

• USB-C power input for stable charging performance.
• Per-slot LED indicators for real-time charging feedback.
• Compatible with various cylindrical sizes including 10440, 14500, 16340, 18650, 20700 and unprotected 21700.
• Suitable for AA/AAA NiMH and 1.5 V lithium rechargeable formats.
• Integrated safety functions including over-charge control and short-circuit protection.
• Activation capability for certain heavily discharged batteries.

Technical specifications

• Model: Xtar MX4 Mini Mixer
• Charging slots: 4 independent bays
• Supported chemistries: Li-ion 3.6/3.7 V, LiFePO₄ 3.2 V, 1.5 V lithium rechargeable, NiMH 1.2 V
• Input: USB-C, 5 V 2 A
• Maximum charging current: 1 A on two slots or 0.5 A on four slots
• Supported Li-ion formats: 10440, 14500, 16340, 18350, 18500, 18650, 18700, 20700, unprotected 21700
• Supported NiMH formats: AAA, AA, A, SC
• Supported 1.5 V lithium formats: AA, AAA
• Battery length range: Approximately 34–70 mm
• Charge indication: LED status per slot
• Protection features: Over-charge, short-circuit, low-voltage activation
• 21700 compatibility: Unprotected cells only
